What is retrieval augmented generation (RAG)? Complete guide

Retrieval Augmented Generation (RAG) is the most practical pattern for making large language models (LLMs) useful with your own data. Instead of training or fine-tuning a model on your documents (expensive, slow, and hard to update), RAG retrieves relevant information at query time and feeds it to the LLM as context. The model generates answers grounded in your actual data rather than its training data.

Enterprise adoption of AI is accelerating fast. McKinsey's 2024 State of AI report found that 78% of organizations used AI in at least one business function in 2024, up from 55% in 2023 - and by late 2025, that figure had climbed to 88%. RAG is the architecture that makes most of those deployments practical, because it lets companies use their own data without expensive model retraining.

How RAG works

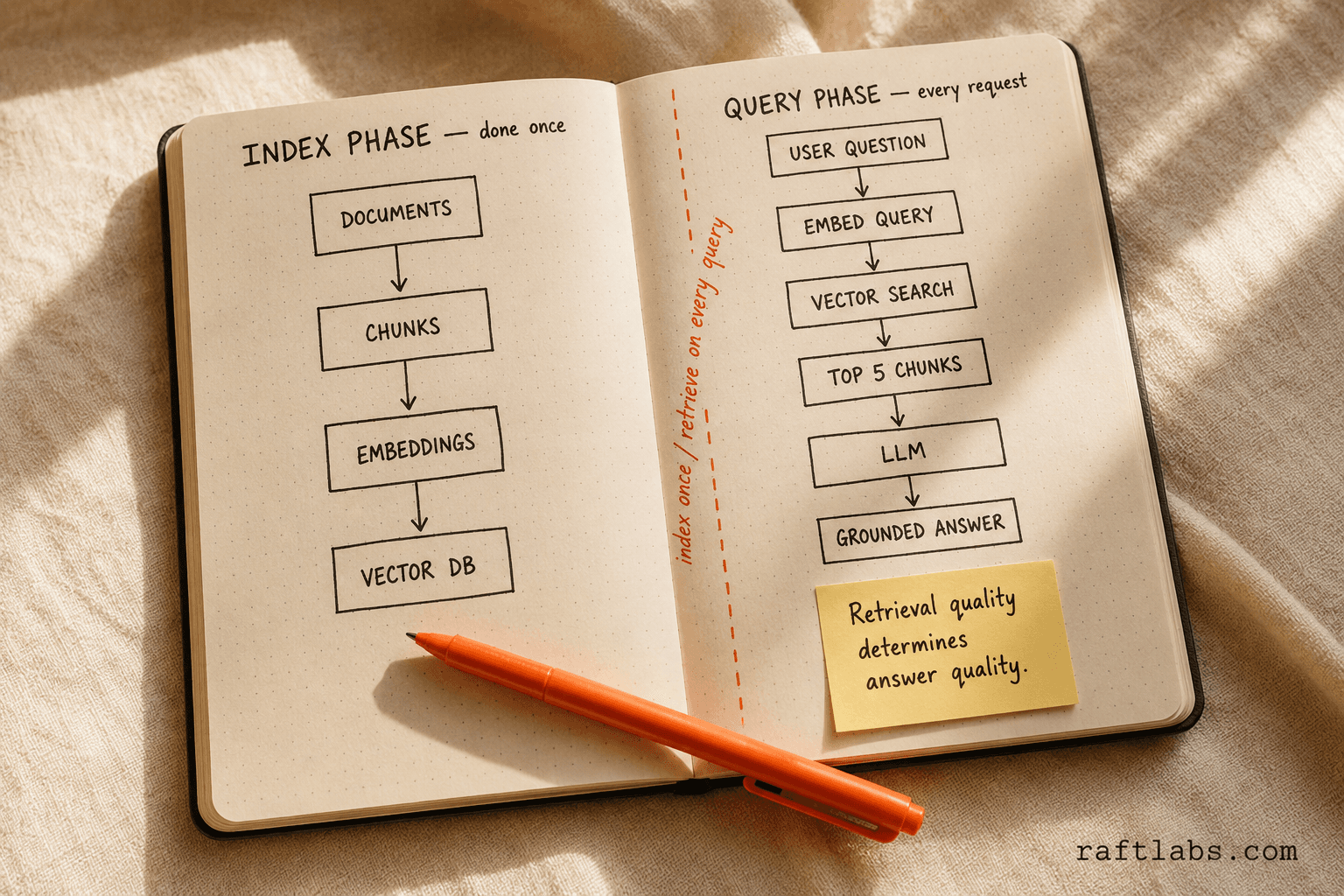

The RAG pipeline has two phases: indexing (done once, updated periodically) and retrieval + generation (done on every query).

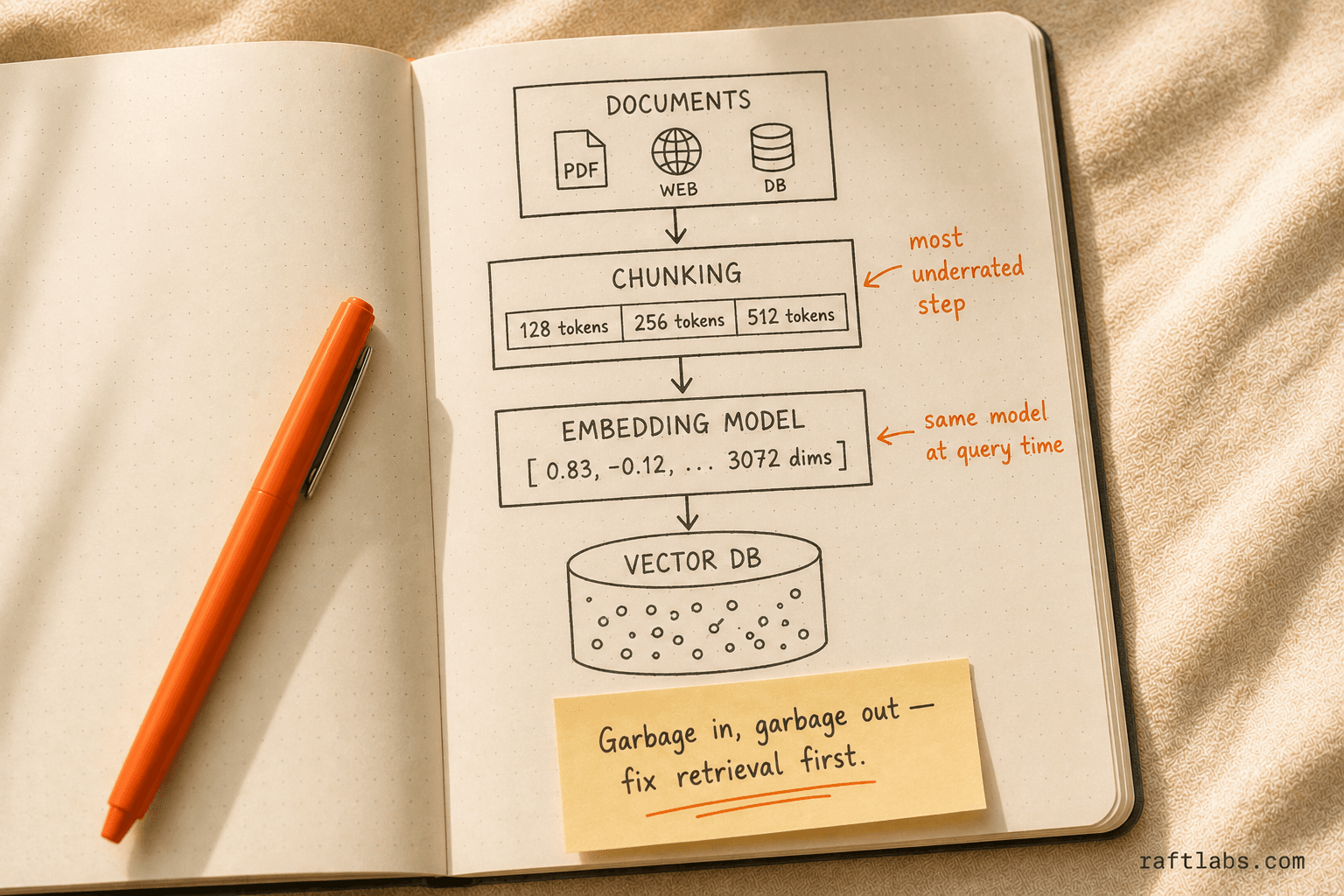

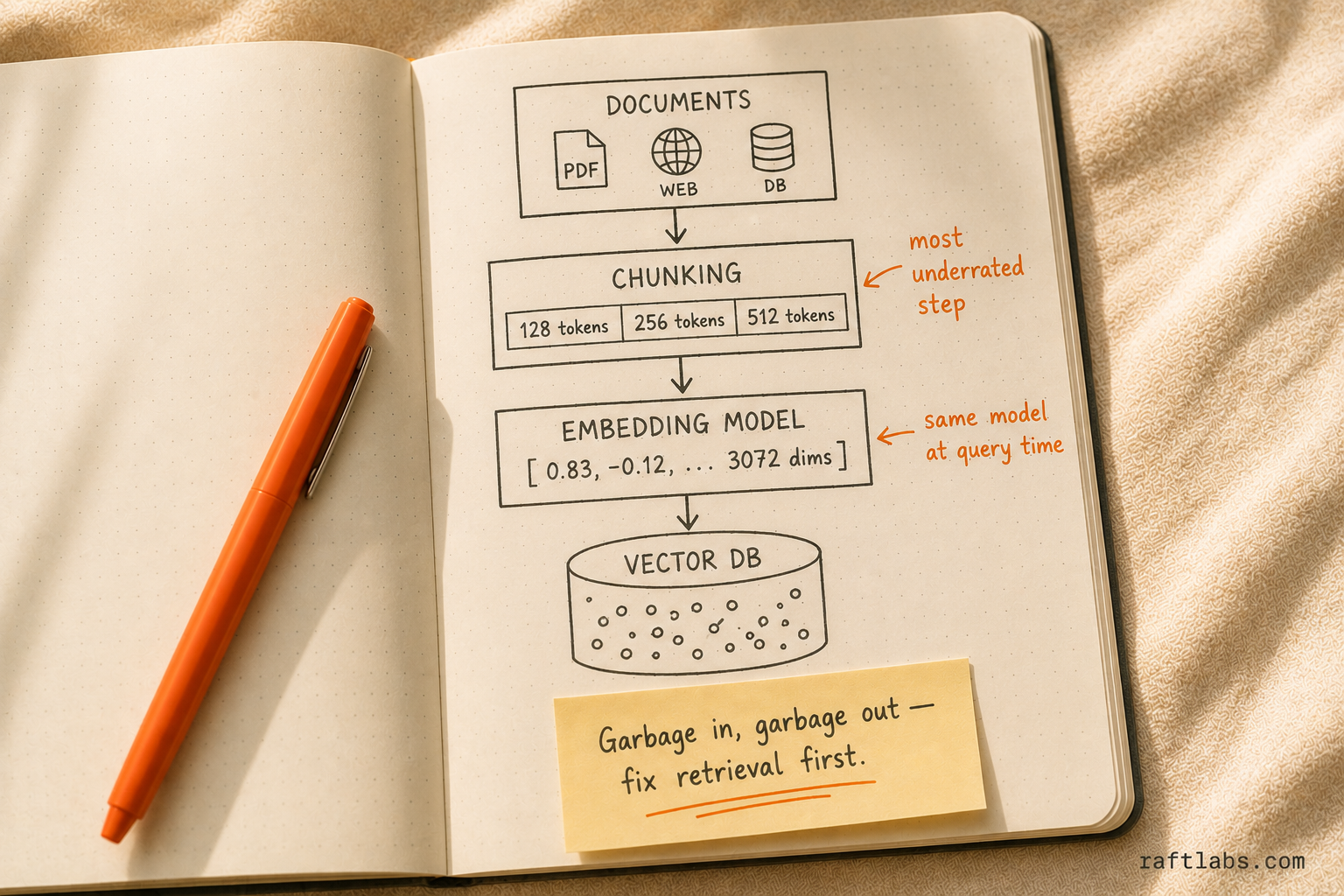

Indexing phase

Step 1: Document ingestion Collect your source documents - PDFs, web pages, database records, Confluence pages, Slack messages, whatever contains the knowledge you want to make queryable.

Step 2: Chunking Split documents into smaller pieces (chunks). This is the most underrated step in RAG and the one that most affects quality. Common strategies:

• Fixed-size chunks: split every 500 tokens with 50-token overlap. Simple, works okay for homogeneous content.

• Semantic chunking: split at paragraph or section boundaries. Preserves meaning better than fixed-size.

• Hierarchical chunking: create chunks at multiple levels (document summary, section summary, paragraph). Retrieve at the appropriate level based on query specificity.

• Sentence-window chunking: embed individual sentences but retrieve surrounding sentences as context. Best for precise retrieval.

Chunk size matters more than most teams expect.

Most RAG quality problems trace back to chunk size, not the LLM. A 512-token chunk works well for general Q&A. Dense technical documentation -- API references, compliance manuals, clinical protocols -- does better at 128 tokens, because larger chunks dilute the specific fact the model needs to find. When chunk size is wrong, retrieval returns the wrong context, and the model hallucinates even though the correct answer is in your corpus. The LLM isn't the problem; the retrieval is.

Chunk size trade-offs:

Step 3: Embedding Convert each chunk into a vector (a numerical representation of its meaning) using an embedding model. Popular choices:

• OpenAI text-embedding-3-large: 3072 dimensions, strong performance across domains

• Cohere embed-v3: good multilingual support

• BGE-large: open source, self-hostable, competitive performance

• Voyage AI: strong for code and technical content

The embedding model determines how well your system understands semantic similarity. Choose based on your content type and language requirements.

Embedding model drift is a silent accuracy killer.

One thing most RAG articles skip: if you update your embedding model -- say, from text-embedding-ada-002 to text-embedding-3-large -- you must re-embed your entire corpus. Every vector in your database was generated by the old model. The new model produces a different vector space. If you update the model but not the stored embeddings, queries and documents no longer live in the same space. Similarity scores become meaningless. Teams that don't know this ship a "better" embedding model and wonder why accuracy got worse. Re-embedding a large corpus takes hours to days. Plan for it.

Step 4: Vector storage Store the vectors in a vector database for fast similarity search. Options:

• Pinecone: fully managed, easy to start, good at scale

• Weaviate: open source, supports hybrid search natively

• Qdrant: open source, fast, good filtering capabilities

• pgvector: PostgreSQL extension, good if you're already using Postgres

• Chroma: lightweight, great for prototyping

The vector database market is growing alongside RAG adoption. MarketsandMarkets projects the global vector database market will grow from $2.65 billion in 2025 to $8.95 billion by 2030 -- a 27.5% annual growth rate driven by enterprise AI deployments that need fast semantic search at scale.

Retrieval + generation phase

Step 1: Query embedding When a user asks a question, embed their query using the same embedding model.

Step 2: Similarity search Find the K most similar chunks in your vector database (typically K = 5-20). This is an approximate nearest neighbor search - fast even over millions of chunks.

Step 3: Context assembly Combine the retrieved chunks into a context window. Order matters - put the most relevant chunks first. Include metadata (source document, page number, date) for attribution.

Step 4: Prompt construction Build a prompt that includes:

• System instructions (role, tone, constraints)

• Retrieved context (the relevant chunks)

• The user's question

• Output format instructions (if needed)

Step 5: Generation Send the prompt to an LLM (GPT-4, Claude, etc.). The model generates an answer grounded in the provided context. Tell it to cite sources and acknowledge when the context doesn't contain enough information to answer.

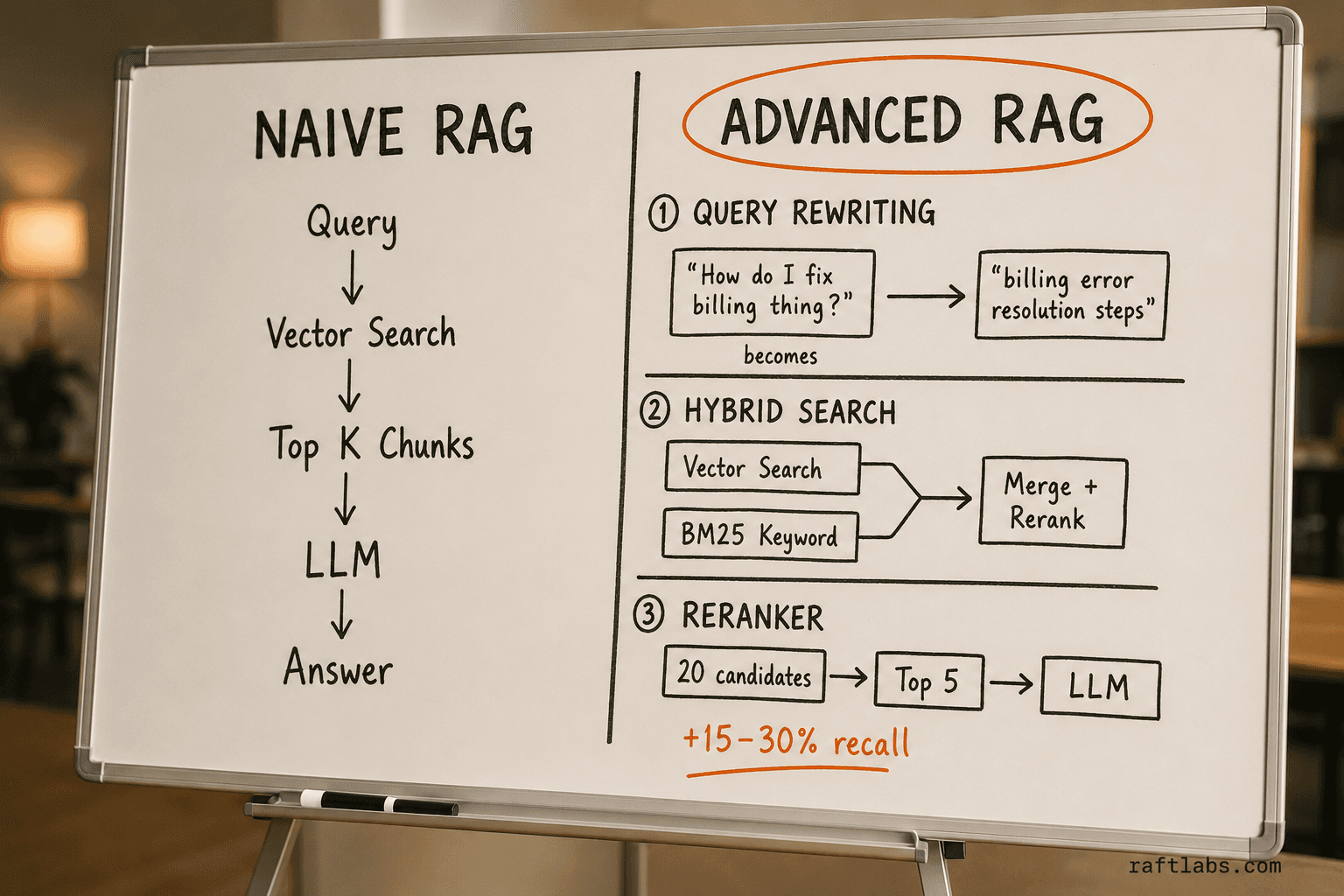

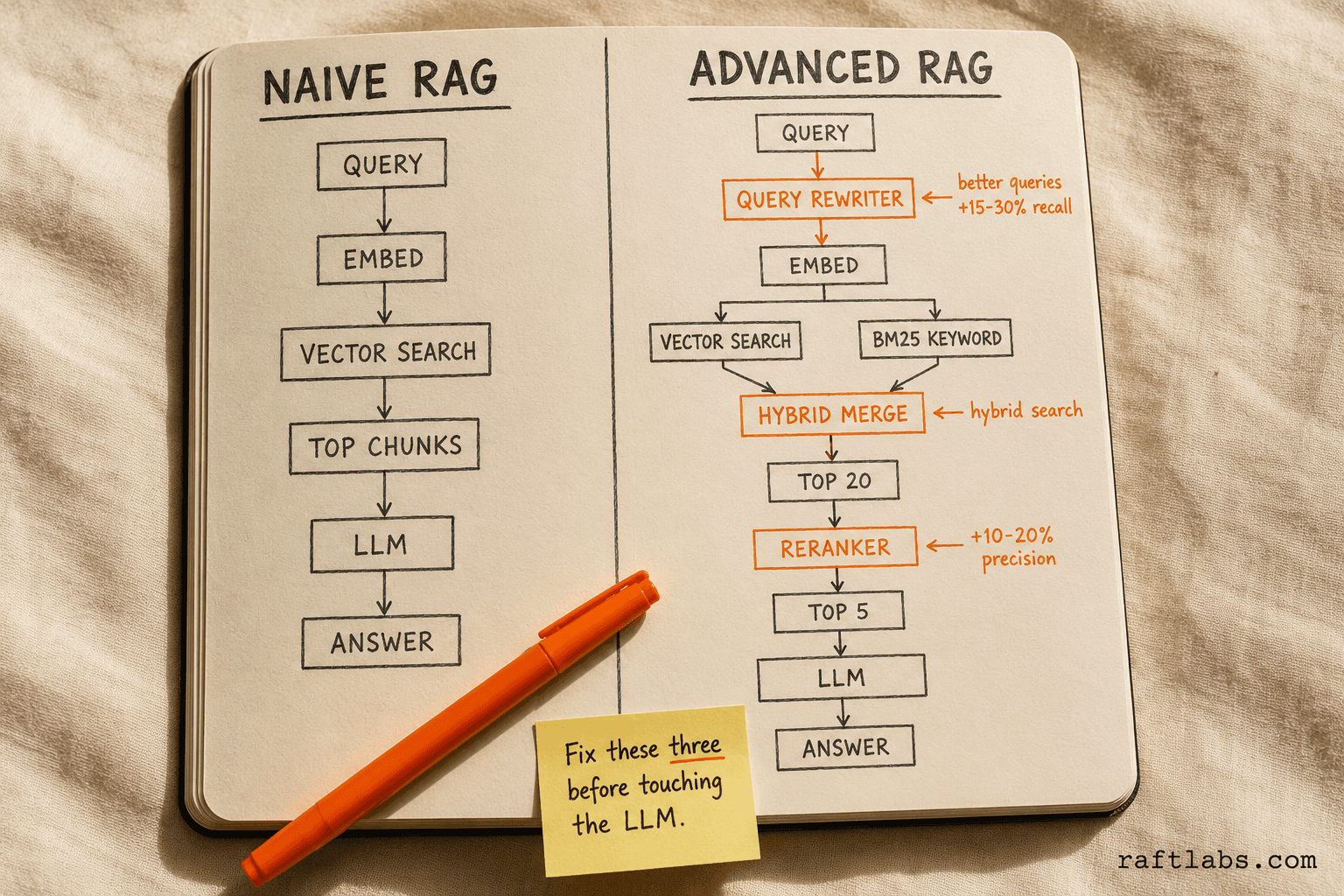

Naive RAG vs. advanced RAG

Most tutorials show you naive RAG: query goes in, vector search runs, top chunks go to the LLM, answer comes out. That's a fine prototype. It's not production.

Advanced RAG adds three things:

Query rewriting. The user's raw question is often a poor search query. "How do I fix the billing thing?" is bad input for a vector search. A rewriting step reformulates it -- "billing error resolution steps" -- before hitting the retrieval layer. This alone improves recall by 15-30% on ambiguous queries.

Hybrid search. Vector similarity finds semantically related content. BM25 keyword search finds exact matches. You need both. A user searching for error code "ERR_AUTH_403" needs keyword matching, not semantic similarity. Hybrid search combines both signals, then merges the ranked results.

Re-ranking. Initial retrieval returns 20 candidates. A cross-encoder re-ranker (Cohere Rerank, BGE-reranker) scores each candidate against the query more precisely than the embedding-based similarity score. You pass the top 5 re-ranked results to the LLM. Typical improvement: 10-20% better answer accuracy, at the cost of an extra 100-300ms.

If your RAG system is underperforming, check which of these three you're missing before touching the LLM or the prompts.

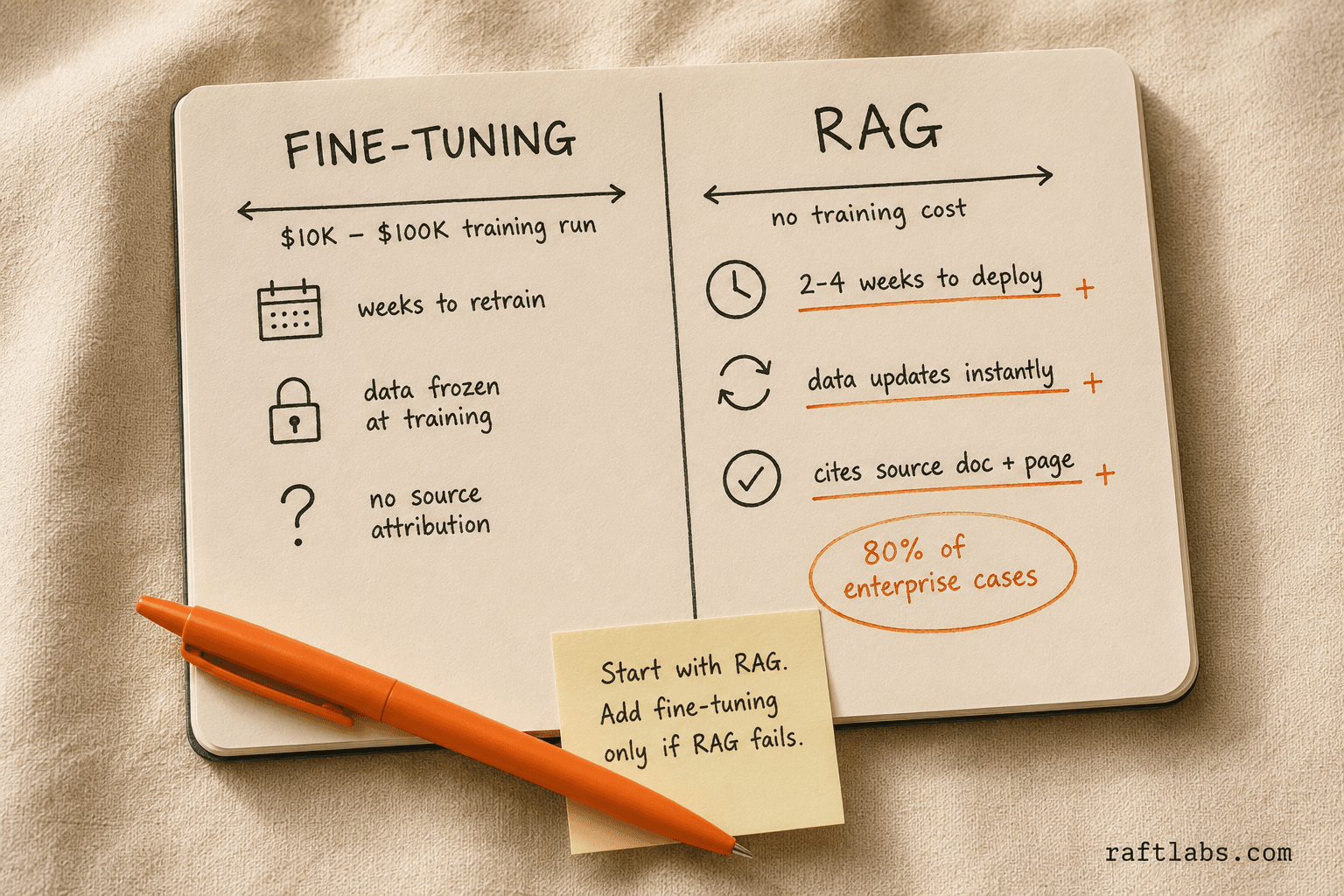

RAG vs. fine-tuning: when to use which

This is the most common question about RAG. The answer depends on what you're trying to achieve.

The RAG market reflects this growth. Grand View Research valued the global RAG market at $1.2 billion in 2024, projecting it will reach $11 billion by 2030 at a 49.1% annual growth rate. Enterprise adoption surveys show that among companies customizing LLMs for internal use, RAG is the most common approach by a wide margin -- because it's faster to implement than fine-tuning and easier to update as data changes.

Use RAG when:

• Your data changes frequently (weekly or more often)

• You need source attribution ("this answer comes from document X, page Y")

• You want to minimize hallucination (RAG grounds answers in retrieved data)

• You have a diverse knowledge base (product docs + support tickets + internal wiki)

• Budget is a concern (RAG requires no model training)

Use fine-tuning when:

• You need the model to learn a specific style, format, or behavior

• Your task is well-defined and consistent (classification, extraction, summarization in a specific format)

• You need the model to internalize domain terminology and relationships

• Latency is critical (fine-tuned models don't need a retrieval step)

Use both (RAG + fine-tuned model) when:

• You need domain-specific language understanding AND access to current data

• The base model struggles with your domain's terminology even with good context

• You're building a production system where both accuracy and currency matter

When RAG is the wrong tool.

RAG assumes your data is stable enough to index. If your knowledge base changes faster than you can re-index it -- live inventory data, real-time sensor feeds, stock prices -- queries will hit stale embeddings. In those cases, a fine-tuned model or function calling (querying a live API at generation time) is a better fit. RAG is not the answer to every "connect LLMs to data" problem. Know the boundary.

In practice, most teams should start with RAG. It's faster to implement, easier to update, and provides source attribution that fine-tuning doesn't. Add fine-tuning only when RAG alone doesn't meet your quality bar.

Architecture patterns

Basic RAG

The simplest implementation. Good for prototypes and single-source use cases.

User Query → Embed → Vector Search → Top K Chunks → LLM → Answer

Pros: Simple, fast to build (1-2 weeks) Cons: Retrieval quality limited by embedding similarity alone

RAG with hybrid search

Combines vector similarity search with keyword search (BM25). Handles queries where exact terminology matters (product names, error codes, specific phrases).

User Query → Embed → Vector Search ─┐
           → BM25 → Keyword Search ──┤→ Merge + Rerank → LLM → Answer

Pros: Better retrieval for mixed query types Cons: More complex, needs tuning of the merge/rerank step

RAG with reranking

After initial retrieval, a cross-encoder model reranks the results for higher precision. This catches cases where embedding similarity retrieves related-but-wrong chunks.

User Query → Embed → Vector Search (Top 20) → Reranker (Top 5) → LLM → Answer

Reranking models: Cohere Rerank, BGE-reranker, cross-encoder from Sentence Transformers

Pros: Significantly better retrieval precision (10-20% improvement typical) Cons: Adds latency (100-300ms per query) and cost

RAG latency: what you're actually paying

Basic RAG adds 200-800ms per query on top of LLM inference time. Retrieval from a vector database is fast (10-50ms), but embedding the query, running approximate nearest neighbor search, and assembling context all add up. With re-ranking, add another 100-300ms. For a chatbot where users expect sub-second responses, this matters. You can cut latency by caching common query embeddings, reducing K (fewer retrieved chunks), or running retrieval and LLM calls in parallel where your architecture allows it. For real-time applications -- live voice agents, sub-500ms response requirements -- fine-tuning or function calling may be a better fit than RAG.

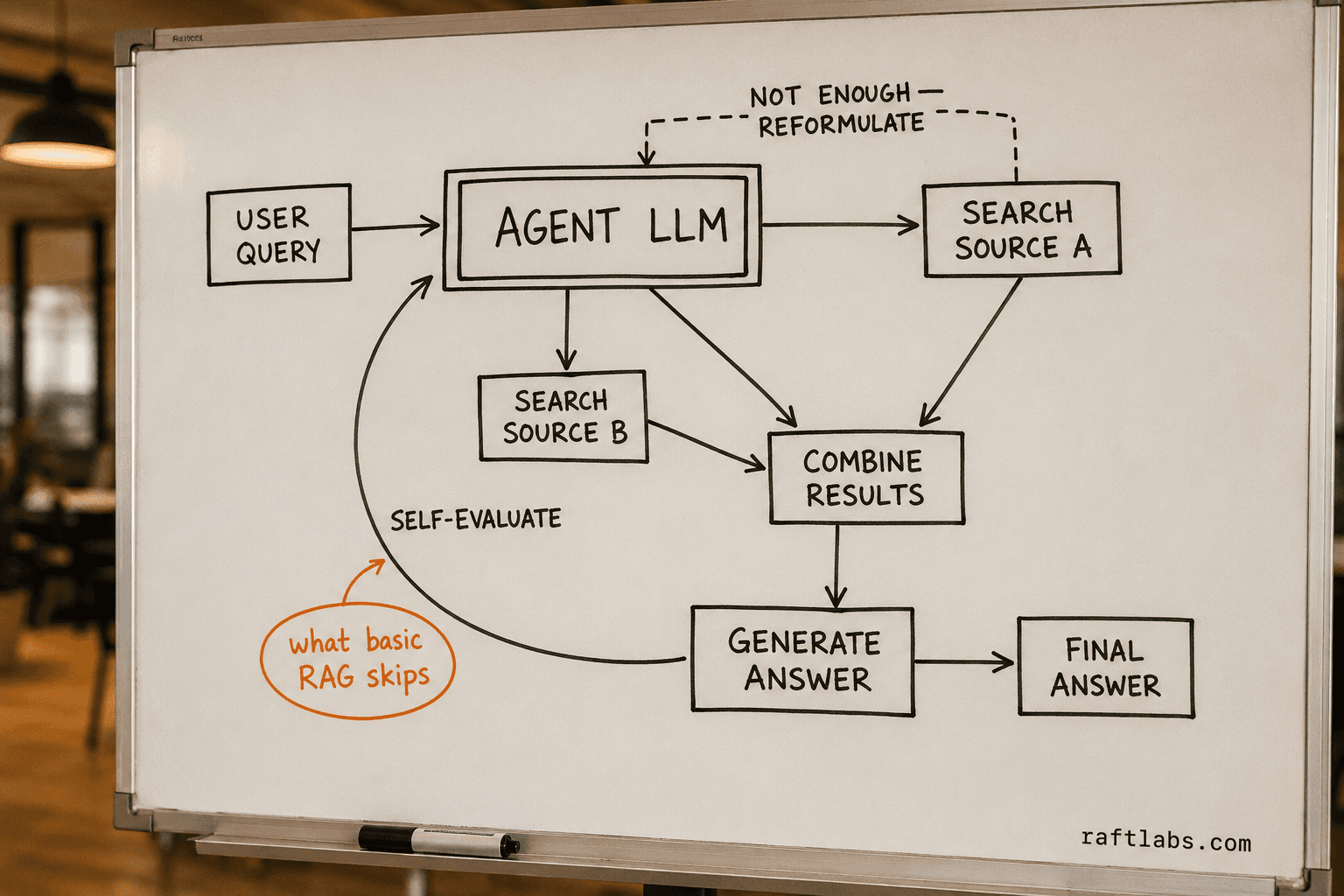

Agentic RAG

The LLM acts as an autonomous agent that decides what to retrieve, when, and from where. It can reformulate queries, search multiple sources, evaluate retrieved results, and iterate until it finds sufficient information. In 2026, agentic RAG has become the baseline for any serious enterprise RAG application -- the static "retrieve once, generate once" pattern is increasingly seen as a prototype-only approach.

User Query → Agent LLM → Decide: What do I need?
                              ↓
                         Search Source A → Not enough → Reformulate → Search Source B
                              ↓                                           ↓
                         Combine Results → Generate Answer → Self-evaluate → Final Answer

Key capabilities beyond basic RAG include query decomposition (breaking complex questions into sub-queries and retrieving for each independently), source routing (deciding which knowledge base to search based on question type), self-correction (evaluating retrieved chunks for relevance and re-retrieving if quality is insufficient), and multi-hop reasoning (chaining retrievals where the answer to one query informs the next).

Pros: Handles complex, multi-step questions across multiple data sources. 90%+ accuracy on complex queries vs. 60-70% for basic RAG. Cons: Higher latency (3-10 seconds vs. 1-3), higher cost (3-5x more LLM calls), harder to debug. See our guide to agentic AI for more.

GraphRAG

GraphRAG combines knowledge graphs with vector search. Instead of treating documents as isolated chunks, it builds a graph of entities and relationships extracted from your data, then uses graph traversal alongside vector retrieval.

User Query → Vector Search (relevant chunks) ─┐
           → Graph Traversal (related entities) ──┤→ Merge → LLM → Answer

GraphRAG wins over standard RAG in three scenarios: multi-hop questions (e.g., "Which customers in the healthcare vertical had escalations related to our billing module?" requires traversing customer/industry/ticket relationships), summarization over large corpora (e.g., "What are the main themes across all Q4 support tickets?" requires entity extraction and clustering), and relationship-dependent queries where the answer depends on connections between entities rather than content within a single document.

Pros: Handles relationship-dependent and multi-hop queries that pure vector search misses entirely Cons: Requires entity extraction pipeline to build the graph, more complex to maintain, higher upfront investment

RAG vs. long context: the 2026 debate

With context windows reaching 1 million+ tokens (Gemini 3.1 Pro) and 200K+ (Claude Opus 4.6), a reasonable question emerges: do you still need RAG at all? Can you just dump all your documents into the context window?

Long context replaces RAG when you have a small knowledge base (under 500 pages / 200K tokens) that fits in context, one-off analysis tasks where building a RAG pipeline isn't worth the setup, or situations where the entire document set is relevant.

RAG still wins when knowledge bases exceed any context window, cost sensitivity matters (sending 1M tokens per query is expensive; retrieving 5 relevant chunks is cheap), latency requirements are tight (processing 1M tokens takes significantly longer than processing 5 chunks), data changes frequently (RAG indexes update incrementally), or source attribution is required (RAG naturally tracks which chunks contributed to the answer).

For most enterprise applications with growing knowledge bases, RAG remains the practical architecture. Long context is a complement -- useful for deep analysis of retrieved documents -- not a replacement.

Implementation steps

Week 1: Data preparation

1. Inventory your source documents (type, format, volume, update frequency)
2. Clean the data (remove duplicates, fix formatting, handle encoding issues)
3. Choose and implement a chunking strategy
4. Select an embedding model and generate embeddings
5. Load embeddings into a vector database

Week 2: Basic pipeline

1. Build the query pipeline (embed query, retrieve, assemble context, generate)
2. Create a simple evaluation dataset (50-100 question-answer pairs from your data)
3. Test retrieval quality: does the system retrieve the right chunks for each question?
4. Test generation quality: does the LLM produce correct answers from the retrieved context?
5. Identify failure patterns (wrong chunks retrieved, right chunks but wrong answer, no relevant chunks exist)

Week 3: Optimization

1. Tune chunk size and overlap based on failure analysis
2. Add metadata filtering (restrict search by document type, date, or category)
3. Implement hybrid search if keyword-sensitive queries are failing
4. Add reranking if retrieval precision needs improvement
5. Optimize prompts based on generation quality analysis

Week 4: Production readiness

1. Add error handling (what happens when no relevant chunks are found?)
2. Implement answer confidence scoring (how sure is the system?)
3. Build source citation into the output
4. Add logging and monitoring (track retrieval quality, generation quality, latency)
5. Implement feedback collection (thumbs up/down on answers)

Common mistakes

1. Ignoring chunking strategy. Most RAG quality issues trace back to chunking. If chunks don't contain complete, coherent information units, the LLM gets garbage context and produces garbage answers. Spend time here.

"Most teams focus on the generation side -- better prompts, better models. But the real use is in retrieval. If you're sending the wrong context to the model, no prompt will save you. Retrieval quality is the most underinvested part of RAG pipelines." -- Harrison Chase, co-founder of LangChain, in a 2024 interview with The Pragmatic Engineer

2. Using only vector search. Vector similarity misses exact matches. A user searching for error code "ERR_AUTH_403" needs keyword matching, not semantic similarity. Hybrid search solves this.

3. Stuffing too much context. More retrieved chunks isn't always better. Beyond 5-10 relevant chunks, you introduce noise that confuses the LLM. Use reranking to select the best chunks, not just the most.

4. Not evaluating retrieval separately from generation. When answers are wrong, is it because the system retrieved the wrong information, or because the LLM misinterpreted correct information? These are different problems with different solutions.

5. Forgetting about data freshness. If your source documents update daily but your index updates weekly, you're serving stale answers. Automate re-indexing on a schedule that matches your data's update frequency.

6. No fallback for out-of-scope questions. Users will ask questions your data doesn't cover. The system should recognize this and say "I don't have information about that" rather than hallucinating an answer from the LLM's training data.

7. Swapping embedding models without re-embedding. Updating your embedding model without regenerating all stored vectors breaks the entire retrieval layer. Similarity scores become meaningless because queries and documents are no longer in the same vector space. Always re-embed the full corpus when changing models.

Performance benchmarks

For a well-implemented RAG system, target:

• Retrieval recall@10: 85-95% (the correct chunk is in the top 10 retrieved)

• Answer accuracy: 80-90% (subjective, evaluated by domain experts)

• Latency: 1-3 seconds end-to-end (query to displayed answer)

• Source attribution accuracy: 95%+ (cited sources actually contain the stated information)

“

No amount of LLM prompt engineering compensates for retrieving the wrong information. Fix retrieval first, then optimize generation.

RAG is the foundation for most enterprise AI applications - customer service chatbots, internal knowledge assistants, document Q&A systems, and more. At RaftLabs, we build RAG-powered applications for clients across industries, from healthcare knowledge systems to fintech compliance assistants. If you're scoping a RAG implementation, our RAG development team can have a production pipeline running against your data in 4 weeks. For teams that want a managed path from ingestion to production, our RAG development services cover the full stack.
