How to Build an App Like Monday.com

Monday.com Pro costs $19 per seat per month. At 50 seats, that is $11,400 per year. Enterprise pricing is custom but typically runs 30-50% higher. A custom-built platform costs $90,000 to $170,000 once. For teams at the $10,000-per-year mark, the payback is under 18 months — and that calculation gets better as the team grows.

The harder question is not whether the math works. It is whether you understand what you are actually building before you start.

What "build an app like Monday.com" actually means

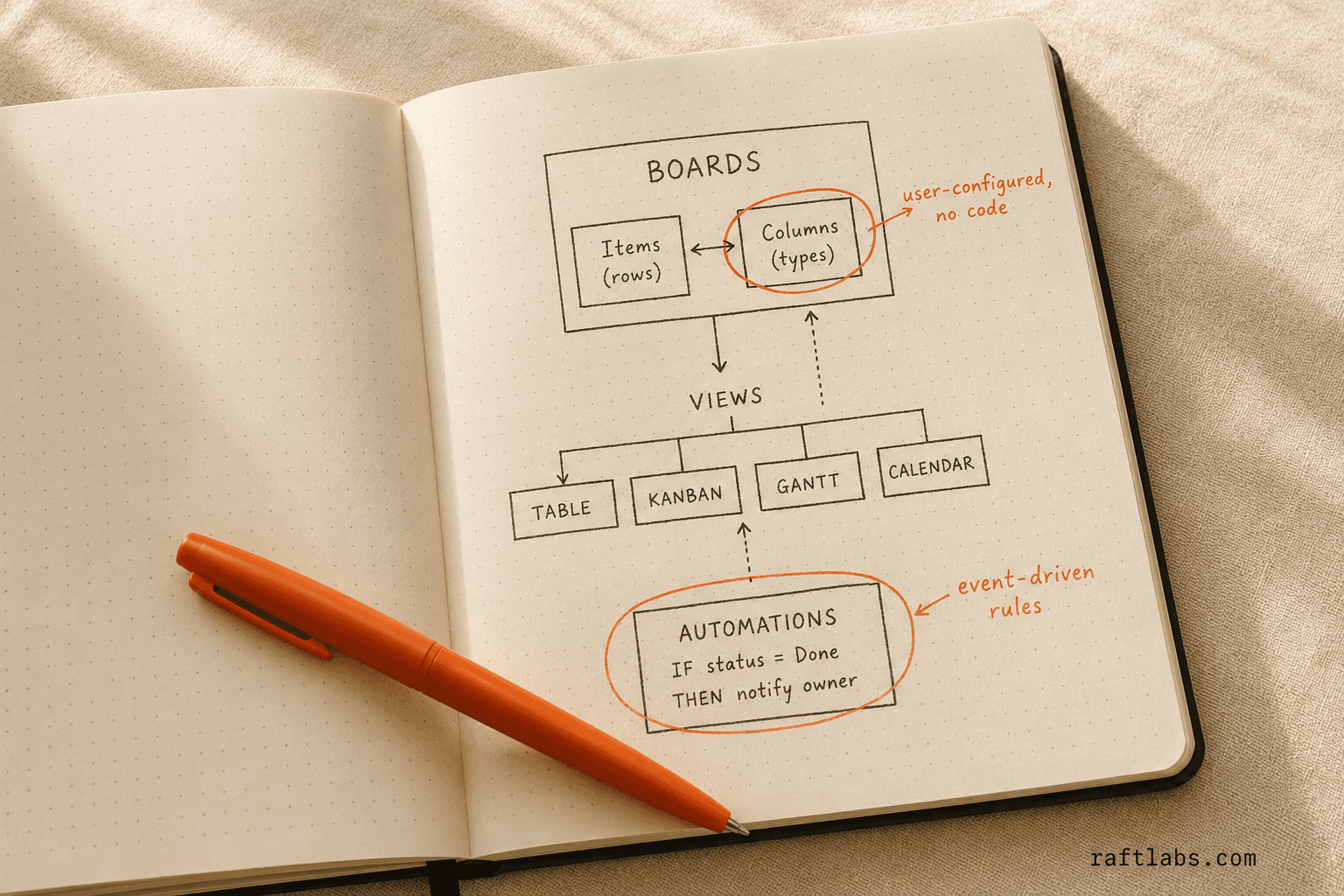

Monday.com is a flexible work management platform built around three core abstractions:

Boards — a collection of items (tasks, projects, clients, campaigns, whatever the team decides) organized in rows. Each board has a fixed set of columns, but users define which column types to include. The same board engine handles a project tracker, a CRM, a content calendar, and a bug tracker — just with different column configurations.

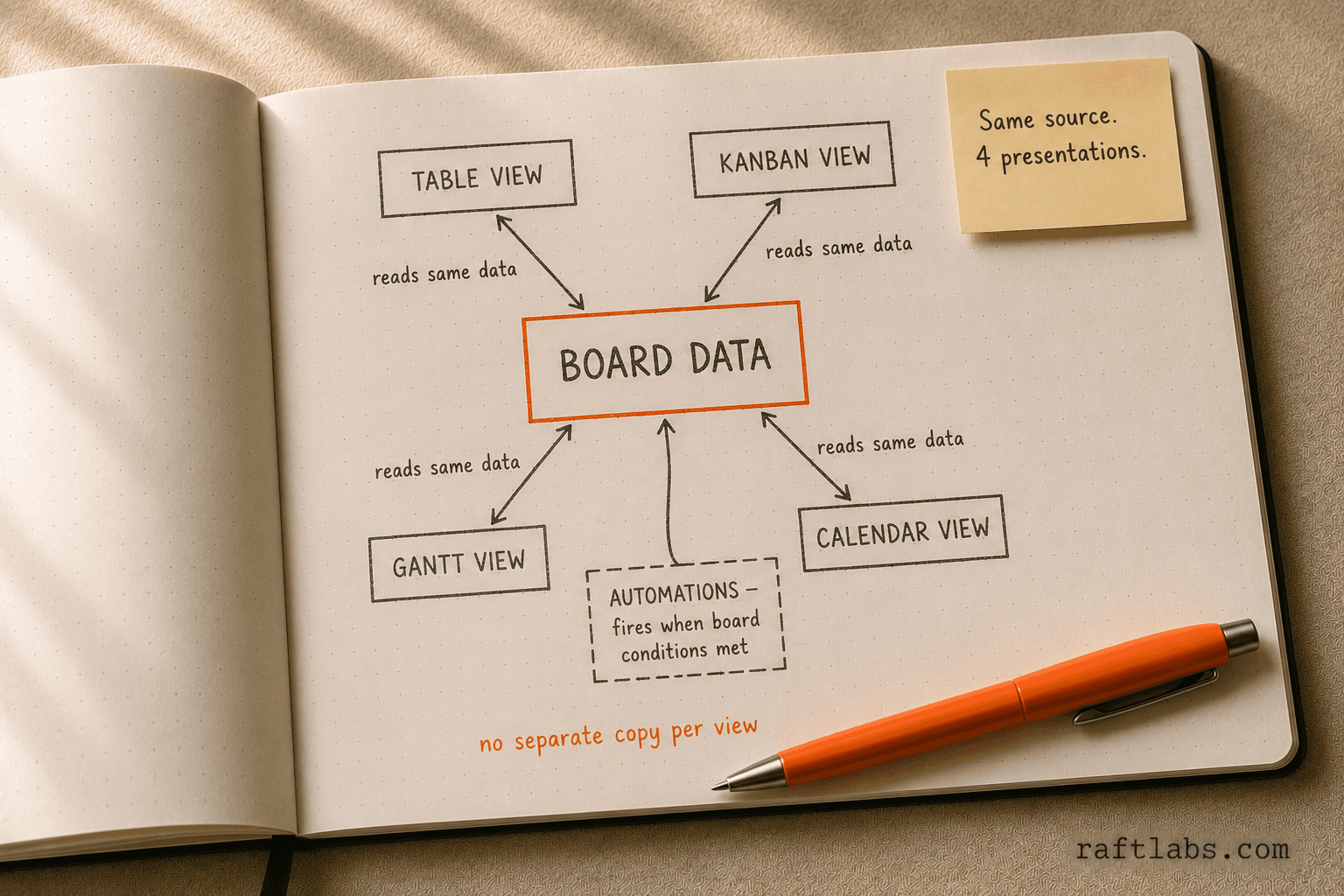

Views — multiple ways to visualize the same board data. Table (default spreadsheet view), Kanban (items grouped by status column), Gantt (items on a timeline using a date or date range column), Calendar (items plotted by due date), Chart (aggregate reporting on numeric columns). Each view reads from the same underlying data; none of them store separate copies.

Automations — if-then-else rules that run when board conditions are met. "When status changes to Done, notify the owner." "When due date arrives, move item to Next Week board." "When a new item is created in this column, assign it to the project manager." Visual builder, no code required.

Dashboards — cross-board reporting. Widgets that aggregate data from multiple boards: burndown charts, workload summaries, budget tracking, KPI displays. The power user feature that drives enterprise upgrades.

Most teams that want a Monday.com alternative need boards, two or three views, and basic automation. Full dashboards and advanced automation are phase-two scope for most first builds.

Core features to build (MVP vs. full platform)

Core board engine (12-16 weeks):

Board and item model — a board is a named container with an ordered list of column definitions. Each column has a type, a name, and type-specific settings (status column: configurable label and color list; people column: maps to user records; formula column: expression that computes from other columns). An item is a row — it stores a value per column, a position in the board, and metadata (creator, created at, last updated).

Table view — the default spreadsheet-style view. Columns render as typed inputs (text input for text columns, date picker for date columns, dropdown for status columns, user search for people columns). Inline editing — click a cell, edit it, save on blur. Drag-to-reorder items. Group items by any column value (group by status creates swim lanes, group by assignee creates per-person sections).

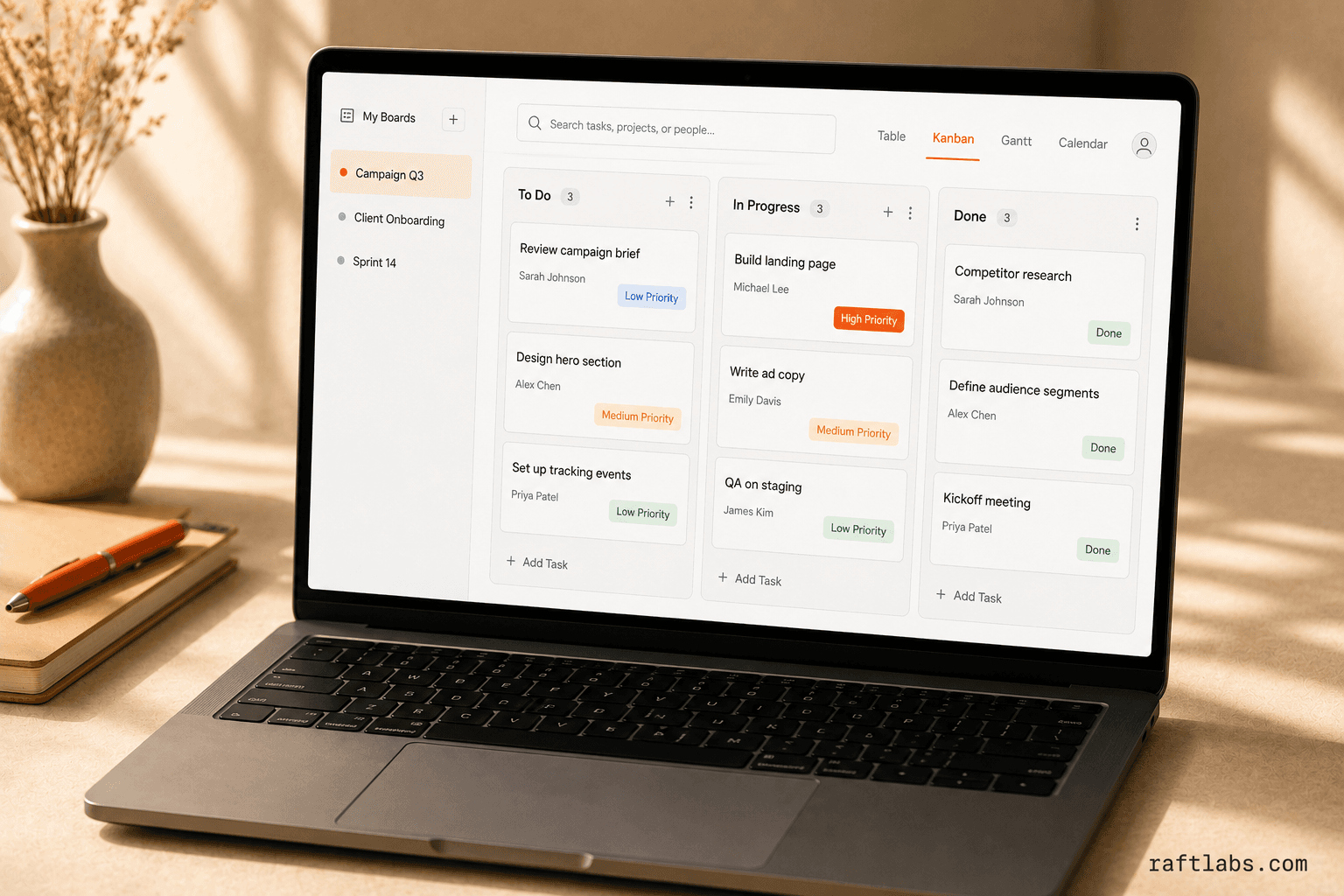

Kanban view — items in a column layout grouped by the board's status column. Drag items between columns to change status. Configurable card content (which columns appear on the card face). Column WIP limits (show a warning badge when a column exceeds a threshold count).

Column types at MVP — at minimum: text, number, status (configurable labels with colors), people (multi-user assignment), date, and checkbox. Formula and dependency columns are phase-two.

Item detail panel — click an item to open a slide-over panel with the full item record: all column values, activity log (every field change with who changed it and when), comments thread, and file attachments.

Groups — items within a board can be organized into named groups (analogous to board sections). Groups can be collapsed, reordered, and assigned a summary row that aggregates numeric columns.

Automation engine (4-6 additional weeks):

Trigger types — item created, status changes to [value], date arrives, column value changes, item moves to group. Each trigger type has configurable conditions (which column, which value, which group).

Action types — notify user, change column value, create item in another board, move item to group, assign to person, send email. Each action type has its own configuration UI.

Automation rule storage — each automation is a JSON rule stored in the database: { trigger: { type, boardId, columnId, conditions }, actions: [{ type, parameters }] }. The evaluation engine reads all active rules for a board whenever a relevant event fires.

Background evaluation — automation rules evaluate as background jobs, not inline with the API request that triggered the event. This prevents slow automation chains from blocking the API response time that the user experiences. The event goes into a queue (Redis/BullMQ), a worker picks it up, evaluates all matching rules, and executes actions in order.

Gantt view (3-4 additional weeks):

Timeline rendering — each item with a start date and end date renders as a horizontal bar on a shared timeline. The timeline header shows dates at day/week/month granularity (user-toggleable). Items with no end date render as a point in time.

Dependencies — optional dependency lines between items (finish-to-start by default). When item A's end date changes, the system can optionally cascade the change to item B's start date (critical path mode). This is the most technically complex part of Gantt — cascade calculations require topological sorting across the dependency graph to avoid circular dependency errors.

Baseline snapshots — record the originally planned dates for each item and render them as a lighter bar behind the current dates. Shows schedule drift visually.

Dashboard reporting (3-4 additional weeks):

Widget engine — dashboards are a grid of resizable, draggable widgets. Each widget has a type (battery/progress, chart, number, text, table), a data source (one or more boards, one or more columns), and filter settings (date range, assignee, status filter).

Cross-board aggregation — the query behind a dashboard widget joins data from multiple boards. This is straightforward when the boards have identical column configurations (same column names, same type). It requires user configuration when boards have different schemas — the user maps column A from board 1 to column A from board 2.

Chart types — bar chart (aggregate count or sum by column value), line chart (value over time for a date-grouped column), pie chart (proportion by status or assignee), burndown (items created vs. items completed over time).

The hardest engineering problems

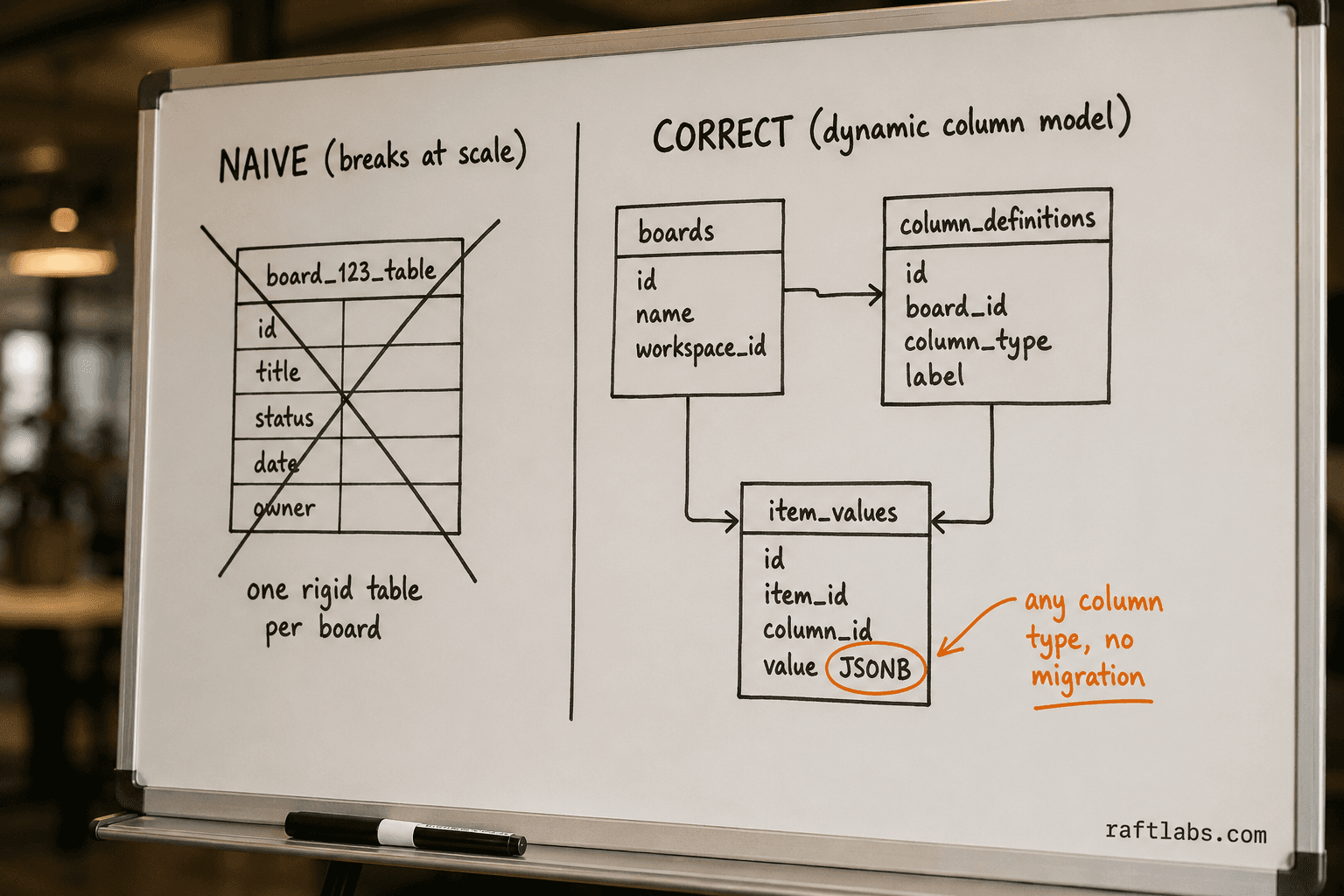

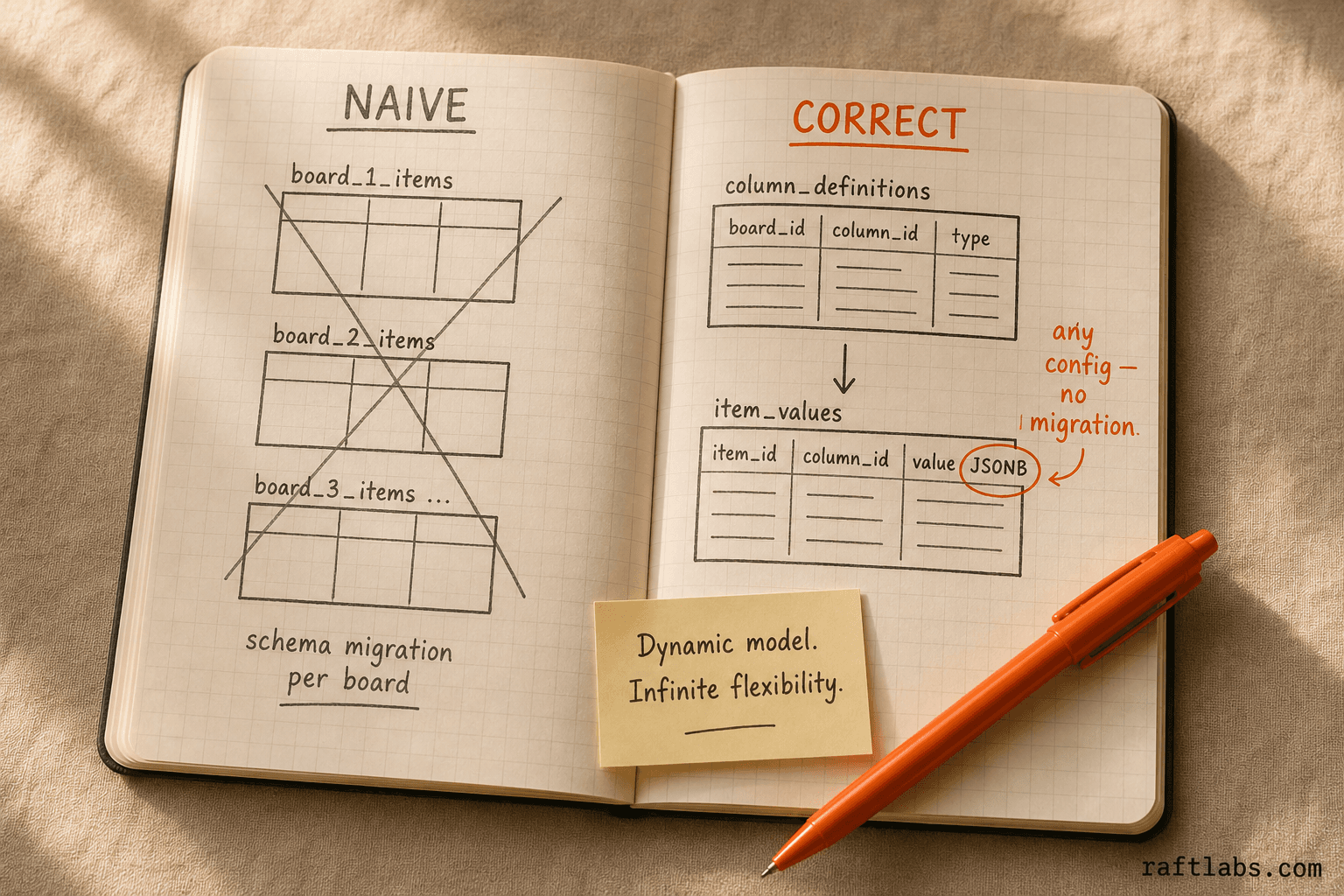

Flexible schema without per-board database tables

Monday.com's core value is that any board can have any combination of column types, user-configured without technical knowledge. This creates an immediate data modeling challenge.

The naive approach — a separate database table per board — does not scale. With thousands of workspaces each containing dozens of boards, you cannot create and migrate a table for each one. The schema would be unmanageable.

The correct approach: a dynamic column model with a JSON value store.

boards table:         id, name, workspace_id, created_at
board_columns table:  id, board_id, type, name, position, settings (JSONB)
items table:          id, board_id, group_id, name, position, created_at
item_values table:    id, item_id, column_id, value (JSONB)

Each column's value is stored as JSONB keyed by column ID. Retrieving a board fetches all items and joins all column values, then assembles them per item in the application layer. This is efficient with proper indexing — composite index on (item_id, column_id) — and allows any column configuration without a schema migration.

The tradeoff: formula columns and computed values cannot use database-level computation (no SUM(column) in SQL). Formula evaluation runs in the application layer when items are loaded, which works fine up to boards with a few thousand items but requires caching strategies at larger scale.

Real-time collaboration

Multiple users editing the same board simultaneously need to see each other's changes without losing their own edits and without page refreshes.

Optimistic updates — when a user changes a cell, the UI reflects the change immediately without waiting for the server response. The API call happens in the background. If it fails (network error, conflict), the UI reverts and shows an error.

Conflict resolution — if two users change the same cell simultaneously, last-write-wins is the simplest approach and acceptable for most project management data. For comment threads and activity logs, all writes must be preserved (append-only).

Presence indicators — showing which users are currently viewing a board (and which item they have open) requires a lightweight presence system. Each client sends a heartbeat to the server every 15-30 seconds with their current location (board ID, item ID if open). The server broadcasts the presence map to all clients viewing the same board via WebSocket. Presence records expire if no heartbeat is received within 60 seconds.

Item lock state — when a user opens an item's detail panel and starts editing, other users viewing the same item should see a "currently editing" indicator. Similar implementation to Zendesk's ticket locking: a short-TTL Redis key per item, renewed on heartbeat while the panel is open, broadcast via WebSocket to all clients viewing the item.

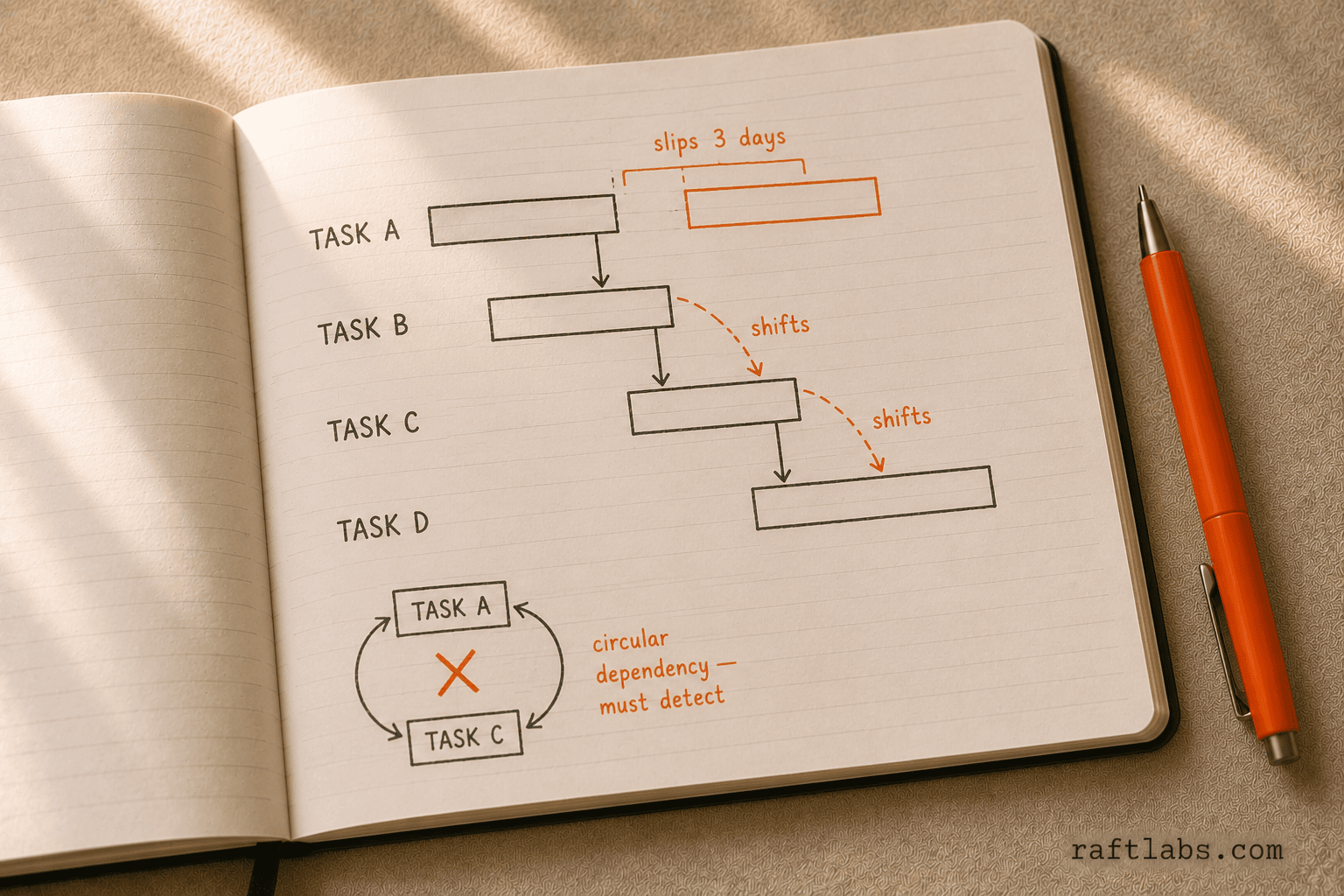

Gantt dependency calculations

Dependencies between items on a Gantt chart sound like a visual feature — draw a line between two bars. The complexity comes from cascade calculations.

When item A's end date slips by 3 days and item B depends on item A (starts when A finishes), should B's start date automatically move 3 days? If yes, does B's end date also move? If B has its own dependents, do they cascade too?

This is a directed acyclic graph (DAG) problem. Before any cascade runs, the system must:

1. Build the full dependency graph for the board
2. Verify there are no circular dependencies (item A depends on item B depends on item A)
3. Do a topological sort to determine evaluation order
4. Apply the date change and cascade forward through the sorted graph

Circular dependency detection is particularly important. A user can accidentally create a circular dependency through the UI (especially in multi-step dependency chains). The system must detect this and reject the dependency creation with a clear error message rather than entering an infinite cascade loop.

Automation rule evaluation at scale

Automations feel lightweight in demos — one rule fires, one action executes. In production, a busy board can have dozens of automation rules. A single item status change can match multiple rules. Rules can trigger actions that themselves trigger other rules.

Infinite loop prevention — if rule 1 changes status to "In Progress" and rule 2 fires when status is "In Progress" and changes it back to "To Do" which triggers rule 1 again, you have an infinite loop. The evaluation engine needs a per-event execution depth counter — stop evaluating after N rule evaluations for a single originating event (typically 10-20 levels).

Rule ordering — when multiple rules match the same event, they need to execute in a deterministic order. User-defined ordering (drag to reorder in the automation builder) is the right UX. Execution order matters when two rules modify the same field.

Action failure handling — if an action fails (sending a notification to a user who has been deactivated, creating an item in a board the automation owner no longer has access to), the remaining actions in the rule should still execute. Log the failure, notify the workspace admin, but do not abort the sequence.

Tech stack

Frontend: React. The board table is the performance-critical component — boards with 500+ items need virtual scrolling (only render the visible rows, not all 500). Use TanStack Virtual or AG Grid Community Edition. The Kanban and Gantt views have different rendering approaches — Kanban is straightforward column lists, Gantt benefits from canvas rendering (via Frappe Gantt or a custom canvas layer) at large item counts.

Backend: Node.js API. PostgreSQL for all data with JSONB for dynamic column values. Use pg or Prisma for database access. Separate background worker processes for automation evaluation.

Real-time: Socket.io for WebSocket connections. Redis pub/sub as the message bus between Node.js API instances when horizontally scaled. Presence heartbeats use a Redis sorted set — score is the Unix timestamp, enabling easy expiry queries.

Background jobs: BullMQ on Redis. Three queues: automation evaluation (high priority), notification dispatch (medium), and reporting aggregation (low, runs during off-peak hours for dashboard pre-computation).

Database indexes for performance: The item_values table needs a composite index on (item_id, column_id) and a separate index on (column_id, value) for filter queries (show all items where status = "Done"). Without the second index, filtering a large board scans the entire item_values table.

File storage: S3 or equivalent for item attachments. Pre-signed upload URLs from the client (browser uploads directly to S3, not through your API) to avoid large binary data in your Node.js memory.

Build cost breakdown

Core MVP (board engine, table view, Kanban, automation, item detail): $89,000-$143,000, 14-19 weeks.

Full platform (all of the above): $155,000-$250,000, 25-35 weeks.

A typical first build lands in the $100,000-$140,000 range with table view, Kanban, basic automation, and item detail panel. Gantt, Calendar, and Dashboards as a second phase.

Ongoing costs after launch

Hosting: A platform serving 50-200 concurrent users runs on $400-$800 per month in cloud infrastructure — compute (Node.js API plus background workers), managed PostgreSQL, managed Redis, and S3. Budget headroom for peak usage (Monday mornings, sprint planning days) which can be 3-5x baseline.

Database cost: The item_values table grows fast. A board with 1,000 items and 20 columns generates 20,000 rows. A workspace with 50 active boards generates 1 million item value rows within months. Budget $200-$600 per month for managed PostgreSQL with adequate storage and provisioned IOPS for production performance.

Background workers: Automation evaluation and notification dispatch run as separate processes. At light load, a single worker handles these. At 10,000+ automation evaluations per day, budget for 2-4 worker processes — add $150-$400 per month.

Maintenance: Project management platforms have frequent minor scope requests — new column types, new automation triggers, export formats, CSV import. Budget $2,000-$4,000 per month for ongoing development to keep pace with user requests and upstream API changes (Slack, calendar, and email integrations need maintenance as those APIs change).

When to build vs. buy

Build if:

You are building a vertical-specific work management tool. Construction project tracking, marketing campaign management, client delivery workflows, legal matter management — these all have specific column types, views, and reporting requirements that Monday.com cannot accommodate without extensive workarounds. A custom build for a specific vertical delivers a better product than a generic tool configured to approximate it.

You are white-labeling a project management tool for agencies, franchises, or client delivery. Each client needs their own branded workspace, their own permission model, and potentially their own data isolation. Monday.com supports some of this, but the reselling model and white-labeling capabilities are limited.

You want project management embedded natively in your SaaS product. If your product is a consulting platform, a construction management app, or a marketing agency tool, embedded project tracking (same session, same auth, no redirect) is a product feature, not an add-on. Monday.com embeds exist but the UX is second-class.

You have 50 or more seats and the annual spend is becoming a material budget line. At 50 Pro seats, Monday.com costs $11,400 per year. A custom build at $120,000 breaks even in under 11 years — except the real comparison is what you do not get with Monday.com: custom column types, custom views, and custom automations designed for your workflows.

Buy (or keep using Monday.com) if:

You need project management running this week. Monday.com is operational in hours. A custom build takes months.

Your workflows are standard: tasks, due dates, assignees, statuses. If Monday.com does this today without significant workarounds, you do not need to rebuild it.

Your team is under 20 people and project management is a support function, not a core product capability. The ROI on a custom build requires scale or product differentiation to justify.

Red flags in project management platform quotes

No discussion of the schema model. Any team that does not ask how your boards should be structured — fixed schema per board type, or fully user-configurable — is quoting the wrong product. Fixed schemas are simpler and cheaper to build. Fully configurable schemas require the dynamic column model described above. If the quote does not distinguish between these, the estimate is almost certainly wrong for one of them.

Automation described as a "rule engine add-on." Automation is load-bearing. It is the reason power users stay on Monday.com. Building it as an add-on after the core board engine is working creates architectural debt — the event system, the queue infrastructure, and the rule storage model need to be designed into the core from the start.

Virtual scrolling not mentioned. Any team building a board table without virtual scrolling has not thought about what happens when a board has 1,000 items. Rendering 1,000 rows in the DOM causes noticeable lag on any device. If the quote does not address virtualization, the performance characteristics of large boards have not been considered.

Single-phase delivery for a full platform. A quote that delivers table view, Kanban, Gantt, Calendar, Dashboards, and full automation in a single 16-week build is not accounting for the compounding complexity of these features. Gantt dependencies alone take 3-4 weeks of careful development. A phased delivery model — core board engine first, views and automation second, dashboards third — is the realistic approach. Beware quotes that promise everything in one sprint cycle.
